The MSB Series - Mechanical Machine Synchronized Battery Powered Units.

125cc and 250cc

Operating Principles

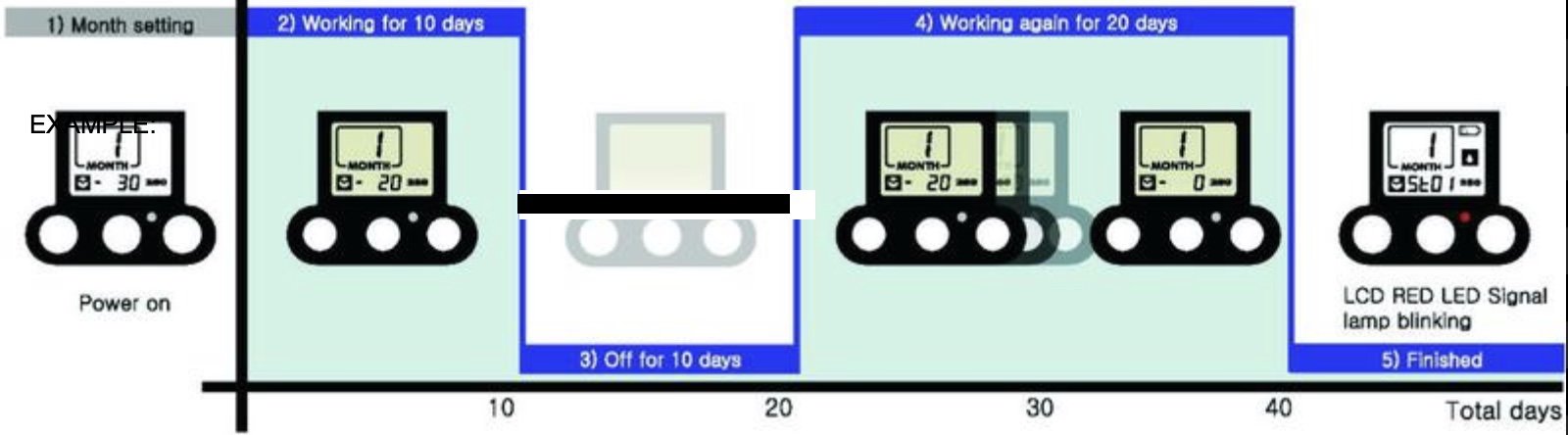

The Technolube MSB series unit turns "ON" or "OFF" in synchronization with the equipment on which it is installed.  It will dispense the preset amount of grease as  long as the machinery is operating.  When the machinery is switched off the Technolube MS goes into standby mode and stops dispensing lubricant until the machinery is back in operation.  It restarts the dispensing cycle within a few minutes.

The MSB is NOT is an externally powered unit. It operates on its own battery.  The battery should be replaced simultaneously with the grease pouch.  This unit will turn ON/OFF through a Relay Box in accordance with the related equipment power signal.   Because it can use the optional lithium battery this unit can operate in temperatures down to -40 degrees C.

Specifications

• Models Available: 60ml, 125ml, 250ml, 500ml and OL500

• Normal Operating Pressure: 30kgf/cm (425psi)

• Operating Temp Range:

  • -15C - 60C (5F - 140F) with standard battery pack

  • -40C - 60C (-40F - 140F) with lithium battery pack

• Multi Point Lubrication: Up to 8 points

• Power Supply: DC 4.5V Replaceable Alkaline Battery or optional Lithium Battery for Lo-Temp

• Other Functions: Same as the Technolube M series lubricators

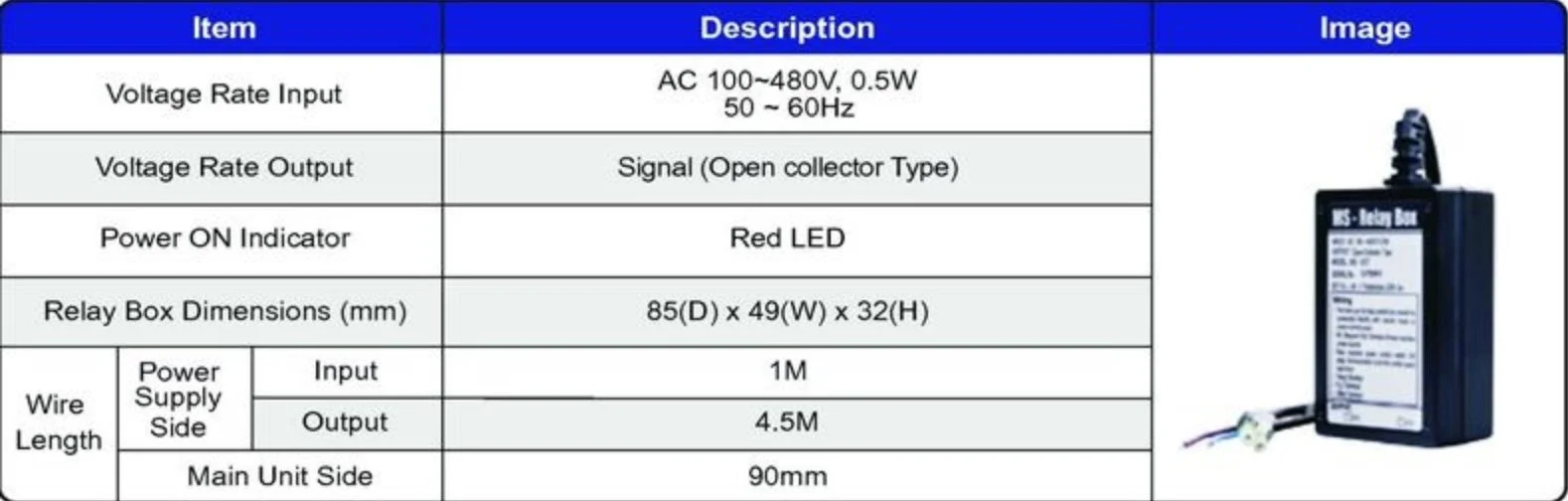

Note: The MSBRelay Box was designed for the Technolube MSB unit only.

Product warranty will be null & void if any other type of unspecified adapter or converter is used.
